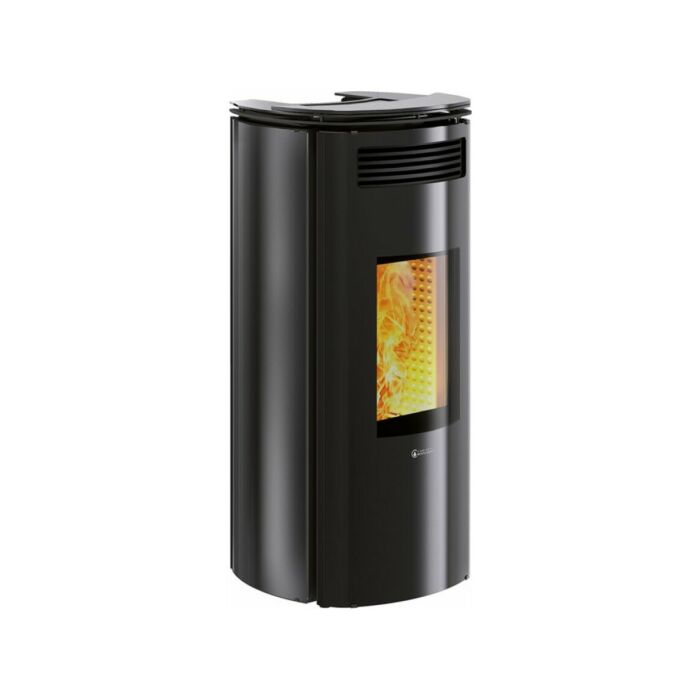

caminetti montegrappa NXS10 EVO Bolla Evo Airtight pellet stove with ventilated and ducted air 10.1 kw - black glass cladding

Circular shape, sinuous lines and minimal design are the main characteristics of Bolla Evo by Caminetti Montegrappa. The structure is characterized by a curved shape with a sliding top. All-glass cladding with "wonder effect".

Data sheet

Line Bolla Evo

Model NXS10 EVO

Numerical model 7294049000 + 2064919702

Category Pellet stove

Depth 51 cm

Environmental class 5 stelle

Finishing Black

Height 113 cm

Other "all glass" cladding

Room size 103 mq

Thermal power 10 kW

Type Ducted hot air
hot air with smart ventilation
hermetic

Width 52 cm

Expected shipment within: Friday, 6 June

₣5,034.49 -29%

₣3,574.48

Prices vat incl.

The lowest price in the last 30 days ₣3,563.78

Corriere standard

+ ₣507.10

To discover all the shipping and installation options

Add to Wish List Add to Compare

Our team at your disposal!

If you need assistance before or after purchasing the item Caminetti montegrappa call us, we will be happy to help you!

Affidati ai nostri esperti
per sviluppare al meglio la tua idea di arredo o semplicemente per chiedere un consiglio sul tuo acquisto.

Contacting us you can request:

CUSTOMIZED QUOTE

MATERIAL AND FINISH SAMPLE

FURNISHING ADVICE AND ALTERNATIVE SOLUTIONS

PRODUCT PHOTOS OR RENDERINGS

Product features

caminetti montegrappa NXS10 EVO Bolla Evo Airtight pellet stove with ventilated and ducted air 10.1 kw - black glass cladding

Airtight pellet stove with ventilated and ducted air 10.1 kw - black glass cladding - Caminetti Montegrappa - Bolla Evo
Circular shape, sinuous lines and minimal design are the main characteristics of Bolla Evo . Curved structure with sliding top. All glass cladding with "wonder effect" . The characteristic of the "wonder effect" glass is that, when the stove is off, it does not reveal the inside of the product, making it a perfect furnishing accessory, while when the stove is working it makes the flame alive and bright, making you rediscover the pleasure of watching the fire.

Main features
- Control panel equipped with backlit graphic display with TOUCH SCREEN digital icons
- SMART ventilation : advanced software for the intelligent management of the room air fan which allows the stove to operate in silent mode ensuring excellent comfort
- Intuitive software with setting of both the room temperature and the maximum operating power. Equipped with STAND-BY function to maintain the desired comfort of the internal environment
- Chronothermostat with settable temperature and with the possibility of choosing the operating power for each programmed time band
- Continuous rotation gearmotor
- Electronic board with the possibility of managing external thermostats
- Cylindrical cast iron burner equipped with flame arrester deflector
- Ignition tube inserted inside the burner, always guarantees perfect ignition of the product
- TUTOR efficient combustion control system
- Modern removable cast iron hearth sides
- Double ducting, served by 2 independent centrifugal fans
- Double flue gas passage on the side of the combustion chamber
- Advanced lateral heat exchanger, in steel, composed of tubular ducts and fins communicating between the sides of the combustion chamber and the external walls, for heating the ducted air
- Heat exchanger, behind and above the combustion chamber, in steel, for heating the ambient air
- Probe to detect the ambient temperature
- Safety thermostat
- Safety pressure gauge
- Tangential ambient air fan
- Removable ash drawer
- Adjustable non-slip feet for correct leveling

Technical features
Dimensions (WxDxH): 52 x 51 x 113 cm
Quality class (DM 186 - 7/11/2017): 5-stars
Global thermal power (at the hearth): 10.1 kW
Certified power: 4.0 - 9.0 kW
Power delivered to the ducting: 2.5 + 2.5 (55%) kW
Measured CO (at 13% oxygen): 0.02%
Yield: 89%
Fuel consumption: 0.91 - 2.1 kg/h
Flue mass flow rate: 3.2 - 6.8 g/s
Fume temperature: 169 °C
Draft (chimney depression): 7 Pa
Tank capacity: 17 Kg
Autonomy: 19 - 8 hours
Smoke outlet pipe: Ø 80 mm
Air inlet for combustion: Ø 60 mm
Heated surface at certified power: 103 *m2
Net weight: 80kg
Weight with packaging: 91 kg

Optional

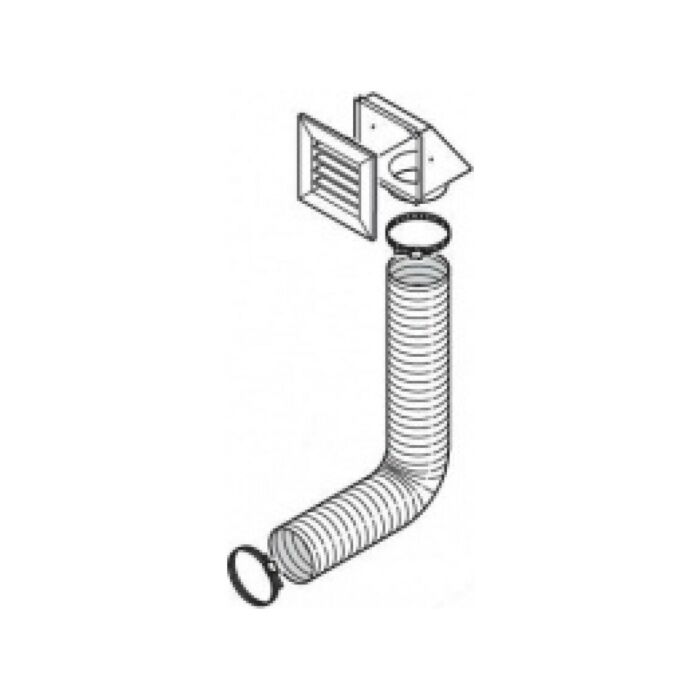

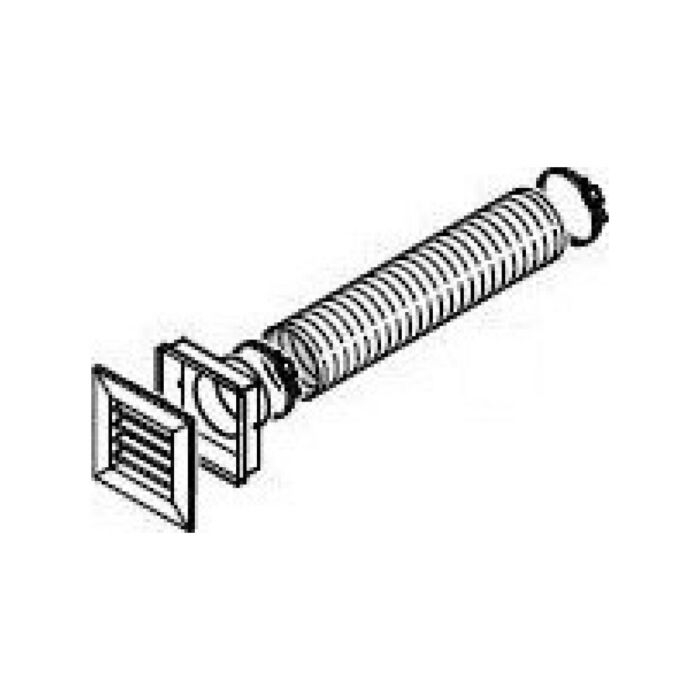

Hot air distribution kit
Nozzle with hopper

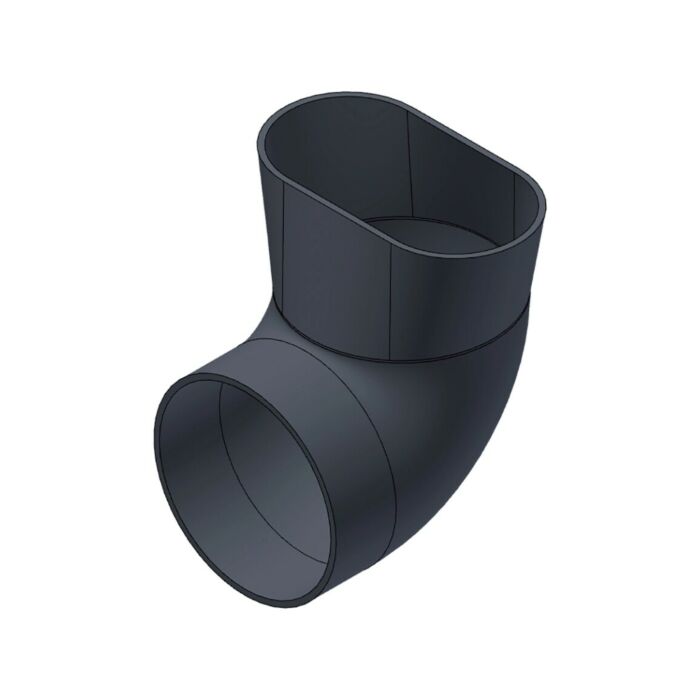

Mandatory curve

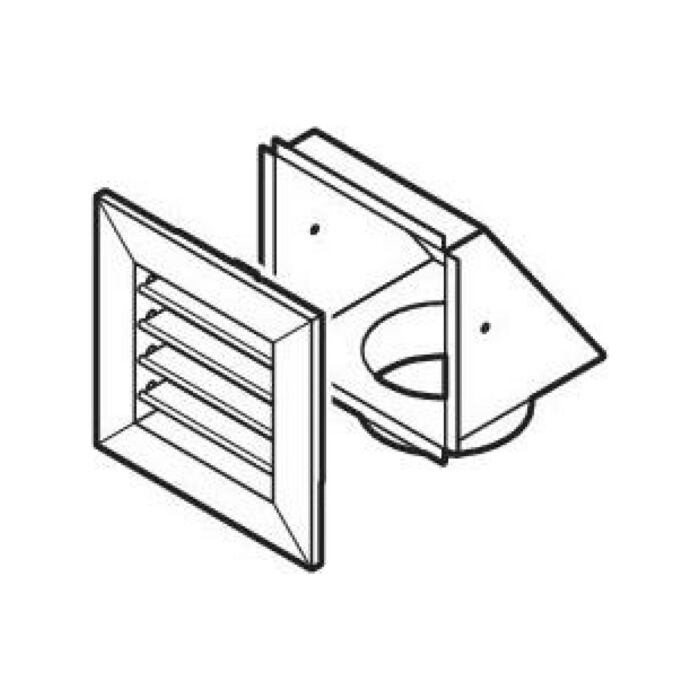

Primary air connection kit
Room temperature probe (3, 10 or 20 meters)
Room thermostat
Wi-Fi module

* with the conditions reported in the General Catalogue
